What is Industrial Doors?
The new generation of automatic lifting doors independently developed by our company has drawn on the strengths of similar products at home and abroad, with excellent performance, and is widely used in workshops, warehouses, fire garages and other places.
The lifting door uses a spring balance device and a low-power transmission system to achieve vertical lifting or turning lifting along the wall. This unique design makes it occupy very little space on the left and right, and it can be opened and closed flexibly, greatly improving the space utilization and convenience of use.
In terms of safety protection, the lifting door is equipped with multiple safety measures. It is equipped with an airbag protection system. When the door encounters an obstacle during operation, it will quickly rebound to the fully open state, effectively avoiding the risk of collision; the small door is equipped with an electrical interlocking device. When the small door is opened, the circuit breaker will immediately cut off the control power supply to prevent the door from accidentally moving and ensure the safety of personnel. In addition, it is also equipped with anti-spring breakage and anti-wire breakage devices. Once the spring or wire rope breaks, it can jam the door in time to avoid accidents caused by the door falling. The electrical control system has protection functions such as motor overload, overvoltage, and overcurrent. When the door is used too frequently or encounters obstacles, the motor can automatically enter a self-protection state to avoid burning due to forced operation. The safety performance is very reliable.
The door panel material is available in two types: polyurethane foam board and polycarbonate fully transparent board. Polyurethane foam board has good thermal insulation performance and can effectively maintain the indoor temperature; polycarbonate fully transparent board has excellent lighting performance, allowing more indoor light.

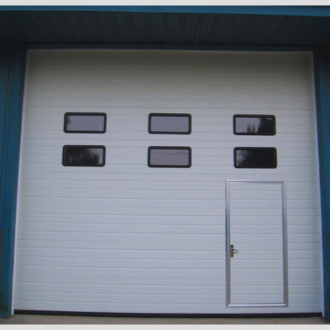

The door opener is equipped with a manual-electric conversion device. In emergencies such as power outages, it can be easily switched to manual mode to open and ensure continuity of use. At the same time, lighting windows and small doors can be set according to the user’s personalized needs, and equipped with a remote control to bring users a more convenient and comfortable use experience.

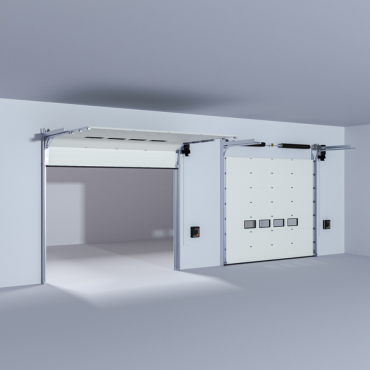

Industrial Doors By Opening Type
Provide more adaptability and worry-free design for your door space
We provide services and support for every step of your project. From architectural design to installation acceptance, all Xufeng industrial doors have extensive service support.

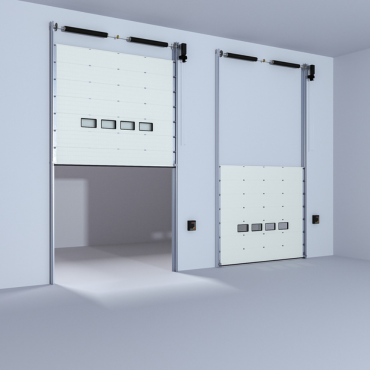

It rises vertically and does not occupy the space on both sides of the door opening, which can release the door opening space to the greatest extent;
It performs well in terms of space utilization, wind resistance, thermal insulation, safety protection, etc.
It is suitable for industrial sites with high requirements for space release, safety protection and environment.
Combined with a variety of lifting methods or structural designs, vertical lifting and turning lifting are combined to adapt to different building structures and insufficient space on the upper side of the door opening. Through combined design, it can better take into account the needs of different aspects, has stronger adaptability and flexibility, can be optimized for complex building structures and usage scenarios, and provide more personalized solutions.
It is suitable for buildings with limited space on the top of the door opening, general industrial buildings that have certain requirements for the functions and performance of the door but do not require special customization, and meet the needs of general industrial scenes with standardization, versatility and economy.
It has relatively standard specifications and designs, and can meet the basic use needs of most industrial sites.
Industrial Doors By Control Method
-

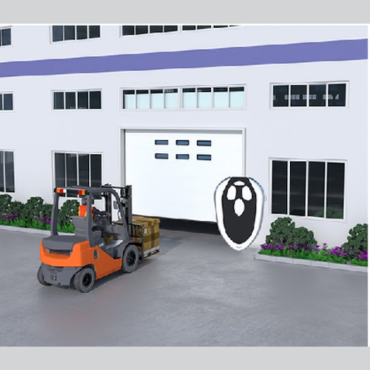

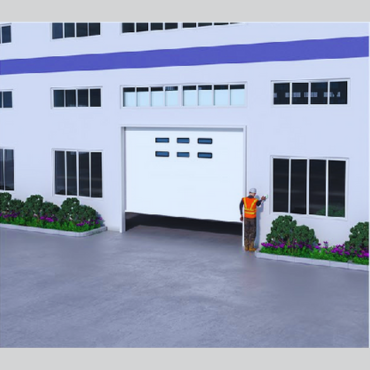

Remote Control -
Photocell Control -
Magnetic Loop Control -

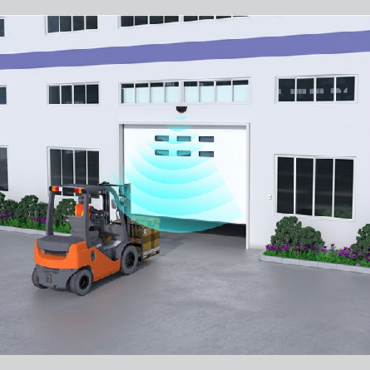

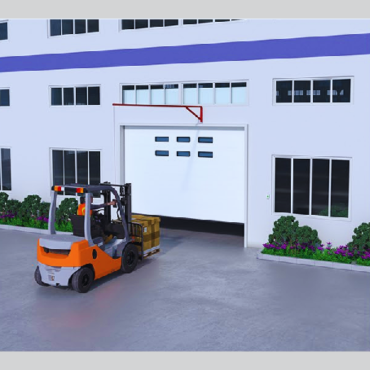

Radar Control
Industrial Doors Features

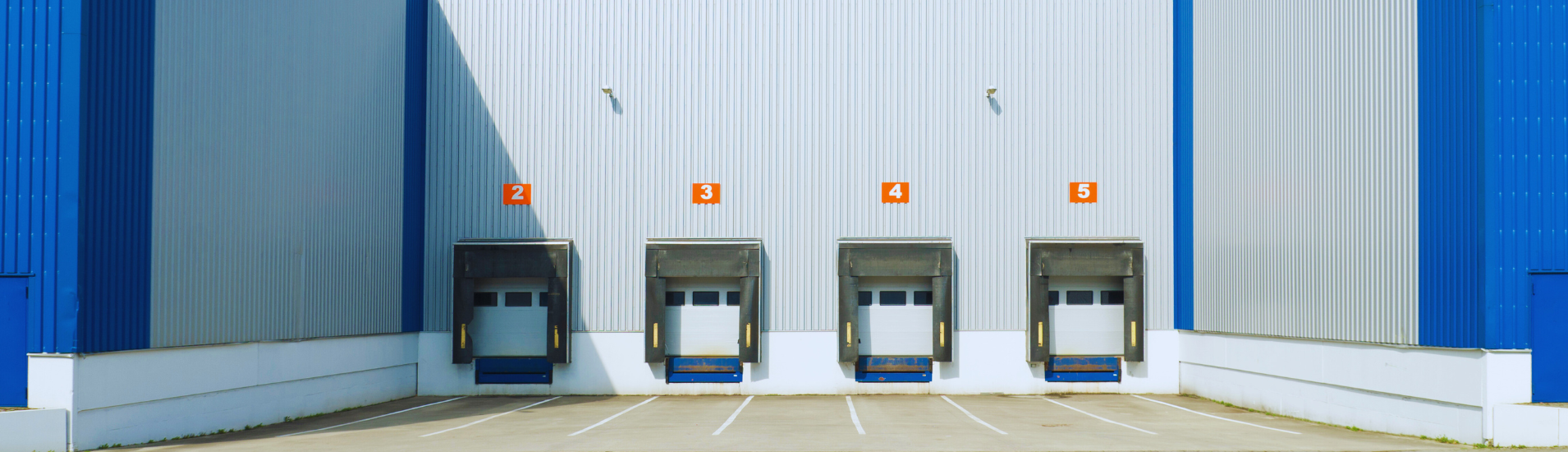

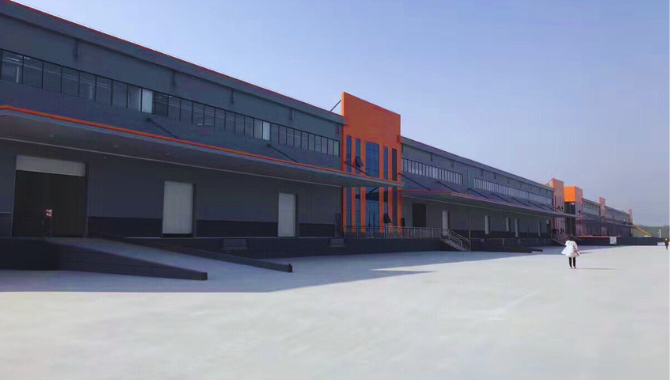

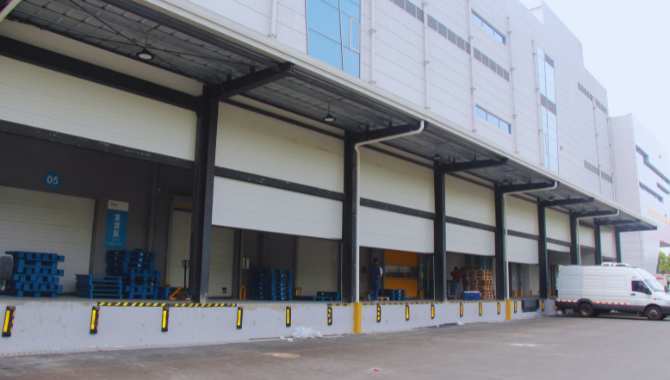

Why Choose Xufeng Industrial Doors？
Expertise and experience
Our knowledge and experience of industrial doors is guaranteed. We can help you choose the door best suits your site and operational requirements.
Full range of door types
Whether it requires insulation, fast opening and closing, maximum security, or is very large, we have engineers who can design, build and install it. We also offer ongoing maintenance programs and emergency call-out insurance.
Expert engineers
With nearly 40 years of experience designing and manufacturing industrial doors, our engineers have a reputation for quality and reliability.
Unique Industrial Door Solution Just for You

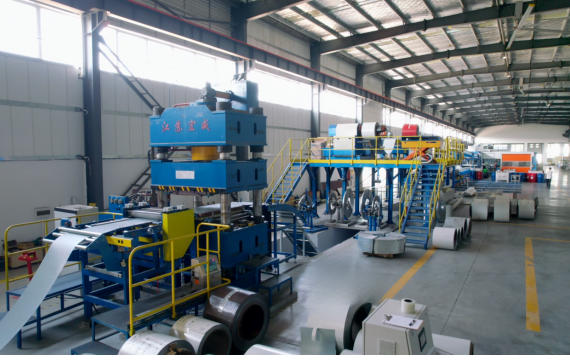

All our industrial doors are custom-designed and manufactured in Wuxi, China, to your specific requirements and specifications.
Providing a comprehensive solution for your business needs, our experienced engineers are at your service. Whether it is a business unit, factory, agricultural building (barn), commercial premises or aircraft scene. Custom custom-designed and manufactured door is custom-designed and manufactured to meet the specific requirements of your premises. They are tailor-made to your precise specifications, ensuring they fit perfectly and meet all your needs.
Xufeng Industrial Door Sealing Advantages
Temperature control and energy-saving upgrade:
make more effective block indoor and outdoor heat conduction, greatly reduce heating and cooling energy consumption, significantly save energy costs, and promote green production.
Improved environmental protection:
All-round dust and insect prevention and efficient blocking of external noise, as well as wind and rain resistance, ensure a clean and stable production environment for the special industries such as precision manufacturing and food processing
Safety performance improvement:
To improve the impending wind pressure force of the door body, eliminate the rainwater leak hidden trouble, ensure that the equipment and goods are Three-dimensional safety and security; At the same time, enhance the building energy efficiency, conform to the development trend of low-carbon environmental protection.
Company Advantage
Our industrial door solutions ensure efficient flow of goods in various scenarios. Made of high-quality materials, our products are durable, highly adaptable, stable in performance and long in service life. They are both cost-effective and safe, and strictly follow the latest safety regulations to provide reliable protection for business operations.

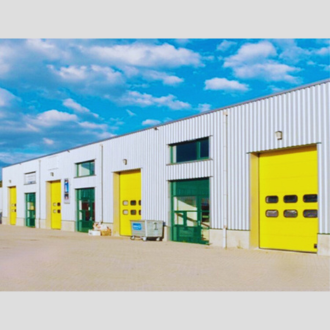

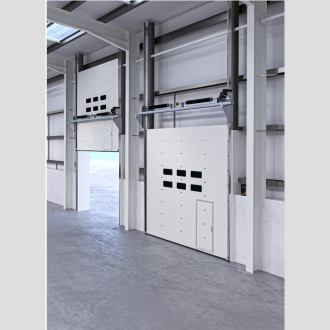

- Gallery
- Data Sheet
| Category | Item | Details |
|---|---|---|
| Selection Codes | Codes | DZSM1, DZSM2, DZSM3, DZSM4 |
| Suitable Opening Parameters | Maximum Width (W) | 8000 mm |
| Maximum Height (H) | 5000 mm | |
| Free Space Reserved Above the Opening (h) – DZSM1 | 485 – 510 mm | |
| Free Space Reserved Above the Opening (h) – DZSM2 | HL + 370 mm | |
| Free Space Reserved Above the Opening (h) – DZSM3 | DH + 370 mm | |
| Free Space Reserved Above the Opening (h) – DZSM4 | ≥ 265 – 300 mm | |
| Free Space Reserved on the Left of the Opening (SL) (when 100 ≤ SR < 350) | ≥ 350 mm | |
| Free Space Reserved on the Right of the Opening (SR) (when 100 ≤ SL < 350) | ≥ 350 mm | |
| Electrical Parameters | Voltage (V) | 380 |
| Frequency (Hz) | 50 | |
| Power (W) | 120, 180, 380 | |
| Performance Parameters | Opening and Closing Speed (m/s) | 0.28, 0.2 |
| Door Leaf Weight Parameters | Weight of Aluminum Surface Door Leaf (kg/square) | 10 |
| Weight of Steel Surface Door Leaf (kg/square) | 16 | |
| Symbol Explanation | HL | Climbing Height |
| DH | Straight Rail Height + Curved Rail Arc Height |
Industrial Doors FAQ
Regularly check whether the appearance of the door body is damaged or deformed, whether the track is blocked by debris, the lubrication of the chain and sprocket, and whether the motor and control system are running normally. Clean the dust and debris on the track and door surface in time, and replace the worn parts in time.
The price mainly depends on factors such as the type, material, size, configuration (such as whether there is an intelligent control system, safety protection device, etc.), and brand of the door. Generally speaking, the more complex the function and the better the material, the higher the price
Multiple factors need to be considered, including door opening size, opening frequency, insulation and sound insulation requirements, wind resistance, budget, etc. For example, for warehouses in cold areas, industrial doors with good insulation performance can reduce energy loss; for logistics channels with frequent in and out vehicles, doors that open and close quickly can improve work efficiency.
Generally includes on-site measurement, foundation construction, door installation, track installation, motor and control system installation, debugging and other steps. The installation process requires professional technicians to ensure the quality and safety of the door installation.
